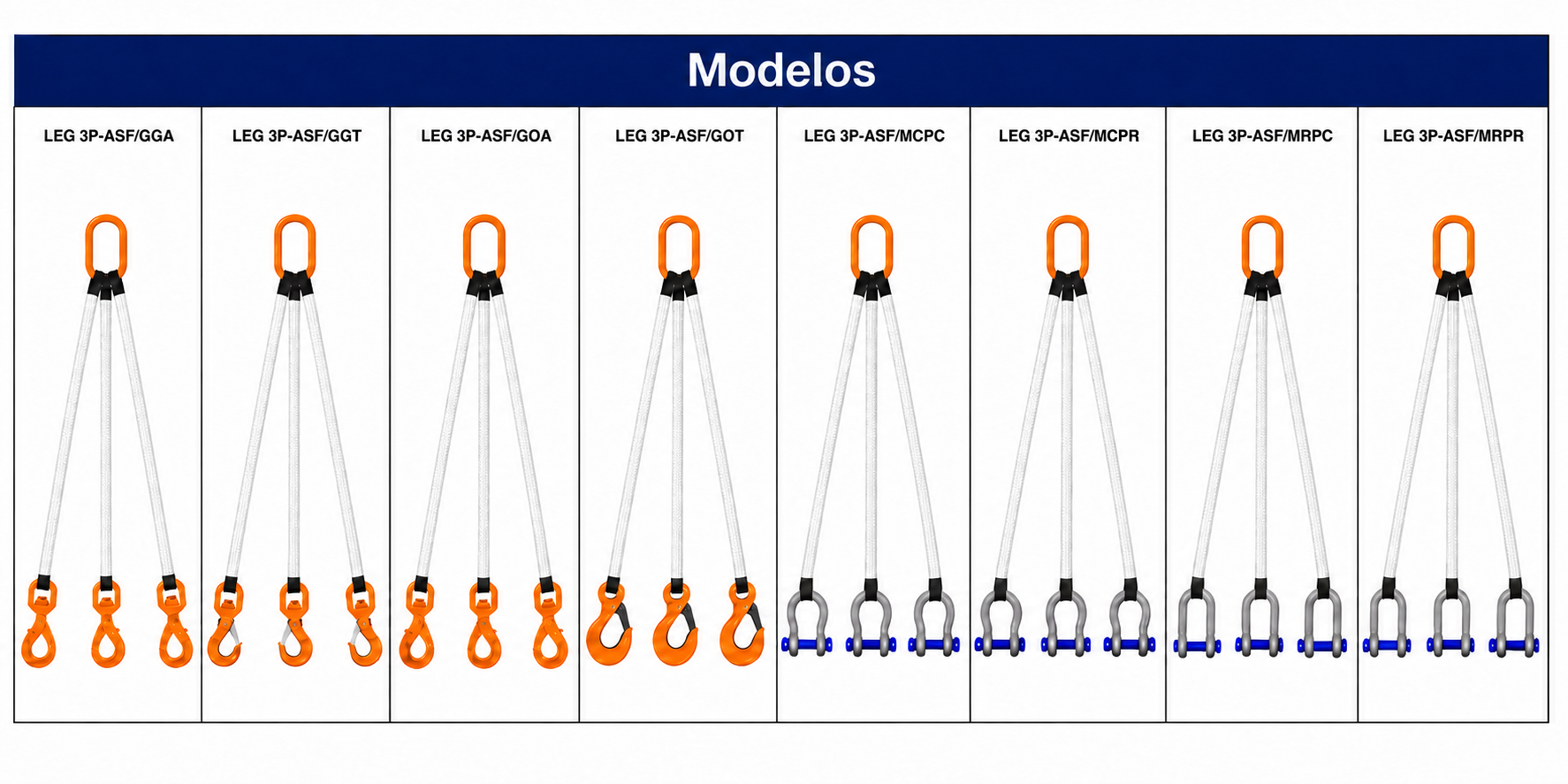

Flat Sling 3 Legs - White
The LEG PLANA 3-LEG WHITE flat polyester lifting sling is manufactured with a safety factor of 5:1. Its main features are: ease of adjustment during the lifting operation, lightweight and high resistance.
Technical Specifications
| Width | Workload 0º à 45º | Workload 45º à 60º | Workload 0º à 45º | Workload 45º à 60º | Workload 0º à 45º | Workload 45º à 60º | |
|---|---|---|---|---|---|---|---|
| Color | 3 Pernas Camada Dupla | 3 Pernas Camada Dupla | 3 Pernas Camada Tripla | 3 Pernas Camada Tripla | 3 Pernas Camada Quádrupla | 3 Pernas Camada Quádrupla | |
| White | 50mm | 4.200kg | 3.000kg | 6.300kg | 4.500kg | 8.400kg | 6.000kg |
| White | 60mm | 5.200kg | 3.700kg | 7.800kg | 5.600kg | 10.500kg | 7.500kg |
| White | 75mm | 6.300kg | 4.500kg | 9.450kg | 6.700kg | 12.600kg | 9.000kg |
| White | 100mm | 8.400kg | 6.000kg | 11.600kg | 9.000kg | 16.800kg | 12.000kg |
| White | 120mm | 11.700kg | 8.400kg | 17.600kg | 12.600kg | 23.500kg | 16.800kg |
| White | 150mm | 14.700kg | 10.500kg | 22.000kg | 15.700kg | 29.400kg | 21.000kg |
